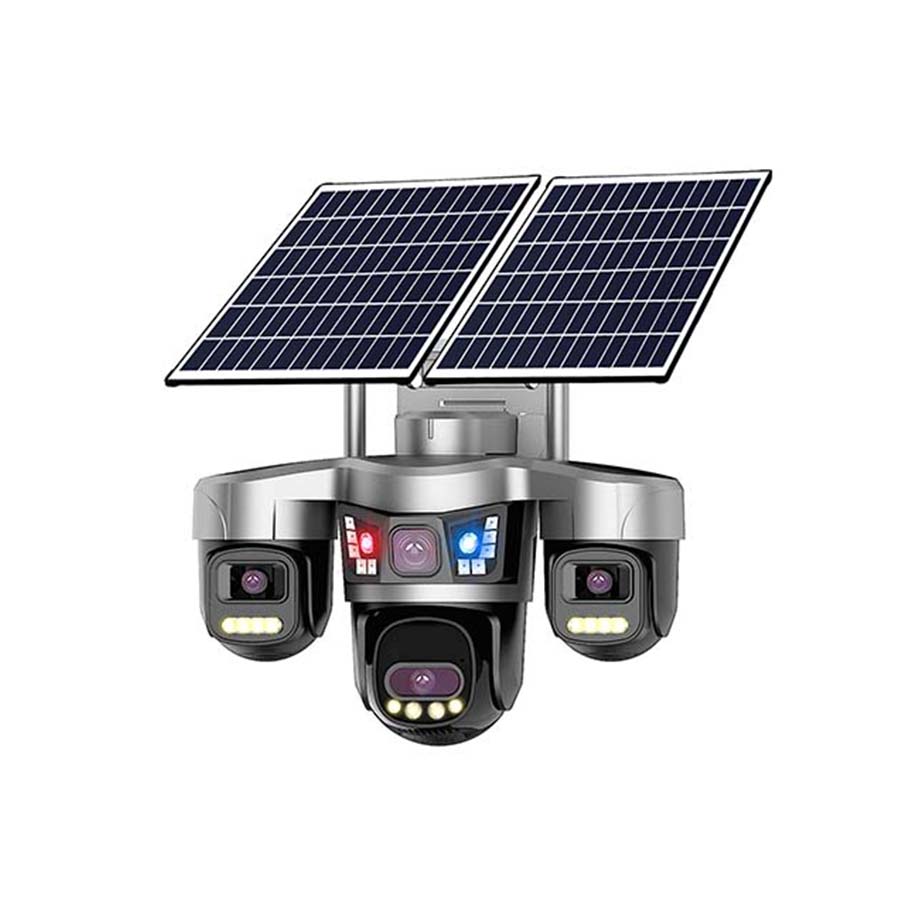

The premium solar workhorse: four lenses on dual monocrystalline panels for maximum coverage and the most harvest margin in the catalog. Dual panels mean faster recharge and winter endurance β for sites that need to run year-round without compromise.
Why This Camera
A fixed wide-angle holds the scene while three PTZ lenses track detail independently. Coverage that one-lens and even dual-lens cameras miss β four viewpoints from one mount, zero blind spots.
Dual monocrystalline panels harvest more watts in the same footprint, shortening recharge cycles and adding critical margin for short-day and overcast conditions. The difference between always-on and sometimes-off β especially in winter or high-latitude regions.
PIR plus AI filters animals, swaying branches and headlights. Your phone gets an alert because a person entered the frame β not because a cat crossed the lawn or the wind moved a tree.
Sealed against rain and dust, rated for -20Β°C to 60Β°C temperature swings. The dual panels are angled independently of the body for optimal harvest. The kind of install you do once and then forget about.
Technical Specifications
| Imaging | |
| Image Sensor | 1/2.8" CMOS low-illumination, per lens |
|---|---|
| Resolution | 2K / 4MP selectable |
| Night Vision | Black-light full-color night vision + 940nm invisible IR fill + LED fill |
| Optics | |
| Lens Configuration | Multi-lens, independent PTZ aim |
| PTZ Control | 355Β° pan / 90Β° tilt per PTZ lens, app remote |
| Presets | Up to 8 preset positions per PTZ lens |
| Digital Zoom | 4x per lens |
| Power & Solar | |
| Solar Panel | Dual high-efficiency monocrystalline panels, adjustable angles |
| Battery | Built-in LiFePO4, large capacity |
| Power Management | Smart load balancing, low-power standby, PIR wake-up |
| Connectivity & Smart | |
| Network | 4G LTE / WiFi dual mode |
| Detection | PIR + AI human detection, instant push alerts |
| Audio | Two-way talk with built-in mic & speaker |
| Storage | MicroSD up to 256GB + cloud storage option |
| Environmental & Build | |
| Weatherproof Rating | IP66 outdoor rated |
| Operating Temperature | -20Β°C to 60Β°C |
| Mounting | Wall / pole bracket included |
Applications
Coverage plus harvest margin for sites that run year-round.
Barn, field and equipment yard from a single solar pole β dual panels for winter.
Multi-month projects where wiring is not viable β dual panels keep it charged.
Wide-angle overview plus three PTZ for detail at every approach.
Multi-lens coverage of shared driveways and entrances β premium finish.
Watch dock, fence and gate from one mount β solar powered, year-round ready.
FAQ
Trial orders start small β talk to us about your volume. Logo printing, custom packaging and firmware defaults are available on OEM terms; we scale with you from first sample to full containers.
Yes β every solar model ships with a LiFePO4 battery sized to cover at least 5β7 nights of typical motion-event use on a single charge. In low-sun regions we recommend the dual-panel MS4x series for extra harvest margin.
Dual panels harvest more watts in the same footprint, shortening recharge time and adding margin for winter and overcast stretches. Recommended for low-sun regions, high-latitude installs, or sites where the camera wakes frequently (deterrence models, high-traffic areas).
Black-light (or super-starlight) night vision uses a large-aperture low-illumination sensor plus invisible 940nm IR fill. It delivers full-color or near-color footage in near-total darkness without the visible red glow of conventional IR cameras β clearer evidence, zero giveaway.
CE, FCC and RoHS compliance for applicable destinations. Tell us your target market and we'll confirm the exact certification package and documentation for your customs clearance.
We're a manufacturer, not a trading desk: spare parts, firmware updates and warranty handling come from our own factory in Huizhou. Your customers stay supported β and so does your reputation.
Request a Quote
Quantities, target market, customization needs β the more detail, the sharper the quote. Typical reply within 24 hours.
