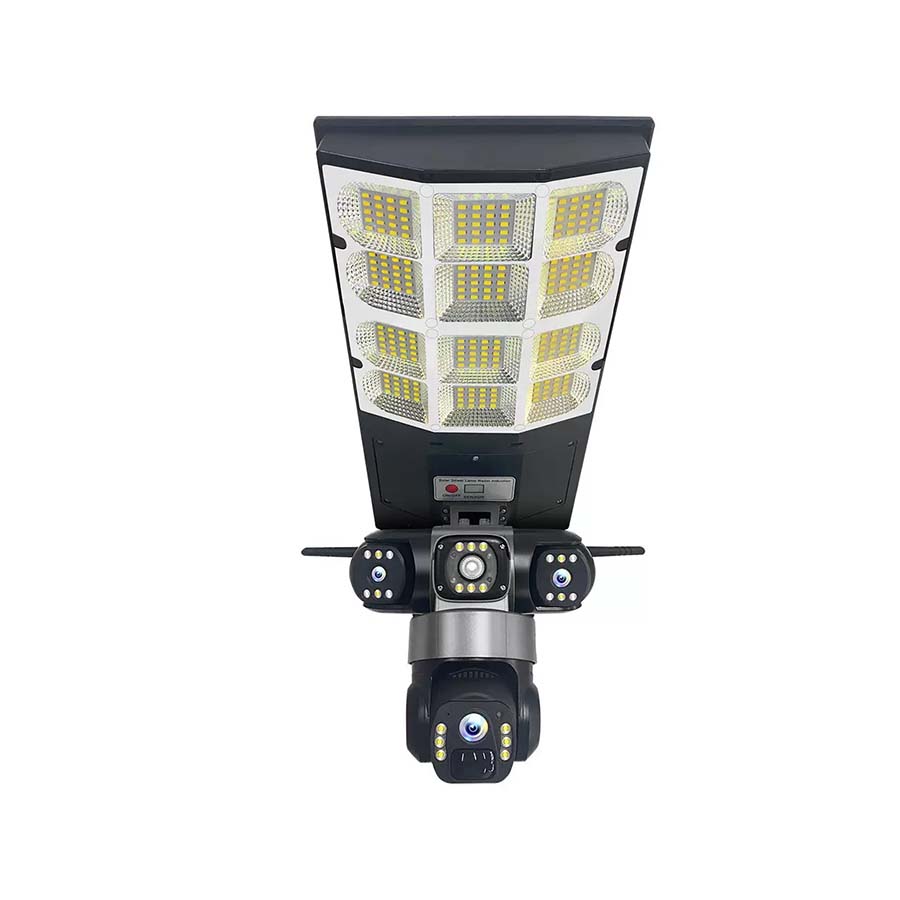

One pole does it all: bright LED floodlighting after dark, plus four-lens PTZ cameras watching everything the light touches. Dusk-to-dawn auto sensing, motion-boost brightness, dual solar panels β the grid never gets involved, and you never need two separate installs.
Why This Camera
Replace two purchases and two installations. The high-brightness multi-panel LED array lights the area while the 4-lens PTZ cameras record in full color β bright scene, usable evidence, one install, one pole, zero wiring.
The light sensor switches the floodlight on at dusk and off at dawn β no timer to set, no seasonal adjustment. Motion-boost raises brightness to full when people enter the zone; dims back to base when they leave. Full brightness only when it matters, saving battery.
Wide-angle holds the overview; three PTZ lenses cover both directions of a road, lane or yard. Check the shopfront and the parking row from the same unit β no blind spots, no separate cameras, one pole does it all.
Dual solar panels on top, LiFePO4 battery inside, camera and light below. Ideal for new developments, private roads and parking areas where pulling mains power costs more than the pole. No electrician, no permit, no monthly cost.
Technical Specifications
| Imaging | |
| Image Sensor | 1/2.8" CMOS low-illumination, per lens |
|---|---|
| Resolution | 2K / 4MP selectable |
| Night Vision | Black-light full-color night vision + LED floodlight assist + 940nm invisible IR fill |
| Optics | |
| Lens Configuration | 4 lenses: 1 fixed wide-angle + 3 PTZ |
| PTZ Control | 355Β° pan / 90Β° tilt each, app remote |
| Presets | Up to 8 preset positions per PTZ lens |
| Digital Zoom | 4x per lens |
| Lighting | |
| LED Floodlight | High-brightness multi-panel LED array |
| Light Control | Dusk-to-dawn auto sensing + motion boost |
| Working Mode | Constant dim base + full brightness on human detection |
| Color Temperature | Warm white / cool white selectable (OEM) |
| Power & Solar | |
| Solar Panel | Dual high-efficiency monocrystalline panels |
| Battery | Built-in LiFePO4, large capacity |
| Power Management | Smart load balancing, low-power standby, PIR wake-up |
| Connectivity & Smart | |
| Network | 4G LTE / WiFi dual mode |
| Detection | PIR + AI human detection, instant push alerts |
| Audio | Two-way talk + siren, built-in mic & speaker |
| Storage | MicroSD up to 256GB + cloud storage option |
| Environmental & Build | |
| Weatherproof Rating | IP66 outdoor rated |
| Operating Temperature | -20Β°C to 60Β°C |
| Mounting | Pole bracket included (pole not included) |
Applications
Light the approach road and capture every vehicle β no mains power along the route.
Pole-mounted lighting that also records: fewer poles, fewer blind spots, better evidence.
Gates and shared driveways get lit and watched with one install β no trenching.
After-hours deterrence: intruders trigger light, siren and recording together.
Workshops and yards without infrastructure β the unit is the infrastructure.
Lane ends and equipment yards: see who comes and goes, day or night β lit and watched.
FAQ
Trial orders start small β talk to us about your volume. Logo printing, custom packaging and firmware defaults are available on OEM terms; we scale with you from first sample to full containers.
Yes β every solar model ships with a LiFePO4 battery sized to cover at least 5β7 nights of typical motion-event use on a single charge. In low-sun regions we recommend the dual-panel MS4x series for extra harvest margin.
The floodlight runs dusk-to-dawn at base brightness, with motion-boost to full brightness when people are detected. Battery sizing is matched to a full night of lighting plus standby monitoring; sustained overcast may reduce brightness, never coverage.
Yes β light schedule and camera settings are configured separately in the app. Some customers run the camera 24/7 and keep the light motion-only for minimal disturbance. Others run both dusk-to-dawn for maximum deterrence.
Black-light (or super-starlight) night vision uses a large-aperture low-illumination sensor plus invisible 940nm IR fill. It delivers full-color or near-color footage in near-total darkness without the visible red glow of conventional IR cameras β clearer evidence, zero giveaway.
CE, FCC and RoHS compliance for applicable destinations. Tell us your target market and we'll confirm the exact certification package and documentation for your customs clearance.
We're a manufacturer, not a trading desk: spare parts, firmware updates and warranty handling come from our own factory in Huizhou. Your customers stay supported β and so does your reputation.
Request a Quote
Quantities, target market, customization needs β the more detail, the sharper the quote. Typical reply within 24 hours.
